Developing Rapid Prototypes to Fast-Track Harbinger’s EV Production

The outlook for commercial electric vehicle (EV) companies is bright yet highly competitive. Nobody knows this better than MES. One of our EV customers, Harbinger Motors, is on a mission to transform an industry they say is “starving for innovation.” Its best-in-class team of in-house developed suspension, electrical, battery, and drivetrain experts has successfully developed proprietary technologies for medium-duty commercial vehicles by completing the Beta phase build and now entering Pilot production.

The Challenge: Accelerate a Beta Version Vehicle Build

Tight timelines literally drive the automotive industry, and none more so than the EV market. As the maker of the first-of-its-kind, vertically integrated EV platform for commercial fleets and medium-duty vehicles, this California-based company felt pressure to introduce its Beta Version Vehicle to the world on time and on budget, thus fulfilling its commitment to investors.

They had the vision, and they knew how to get to the finish line by partnering with global suppliers like MES. The only problem was that they needed die cast components and structural forgings even before development was completed as they transitioned from prototyped parts to production level tools. Specifically, they needed eight component variants in just two short weeks to cover production requirements before development completed and first production samples available

MES offered its use of industry-leading supplier base for prototyping as a solution. While rapid prototyping in and of itself is enough of a challenge, there were very specific requirements for their Pilot Vehicle builds:

  • Manufactured from 42CrMo4 Alloy Steel block (SAE 4140)
  • Machined per 3D model
  • Tolerances per 2D prints
  • CED coated with a top coat with powder coat finish
  • Must withstand 1,000 hours of salt spray life

The Solution: Technology Meets Technique

Rapid prototyping capabilities are essential for EV makers, giving them and other automotive manufacturers the ability to speed their product design and development to market ahead of the competition.

While the need for fast manufacturing is obvious, the “how to get there” is not.

”Our Bombay Metrics team excelled in offering timely solution to this gap in available parts that put customer production at-risk. It truly was remarkable how quickly we identified a supplier that could meet the demanding schedule,” says Austin Downs, “In fact, the customer had another solution for prototyping however they could not meet the timeline and pricing was much higher. Our team excelled at quality and delivery whistling juggling three suppliers to produce the parts, without hiccup.” –  Raj Nanjukutty Bombay Metrics General Manager

Overcoming Rapid Prototyping Challenges

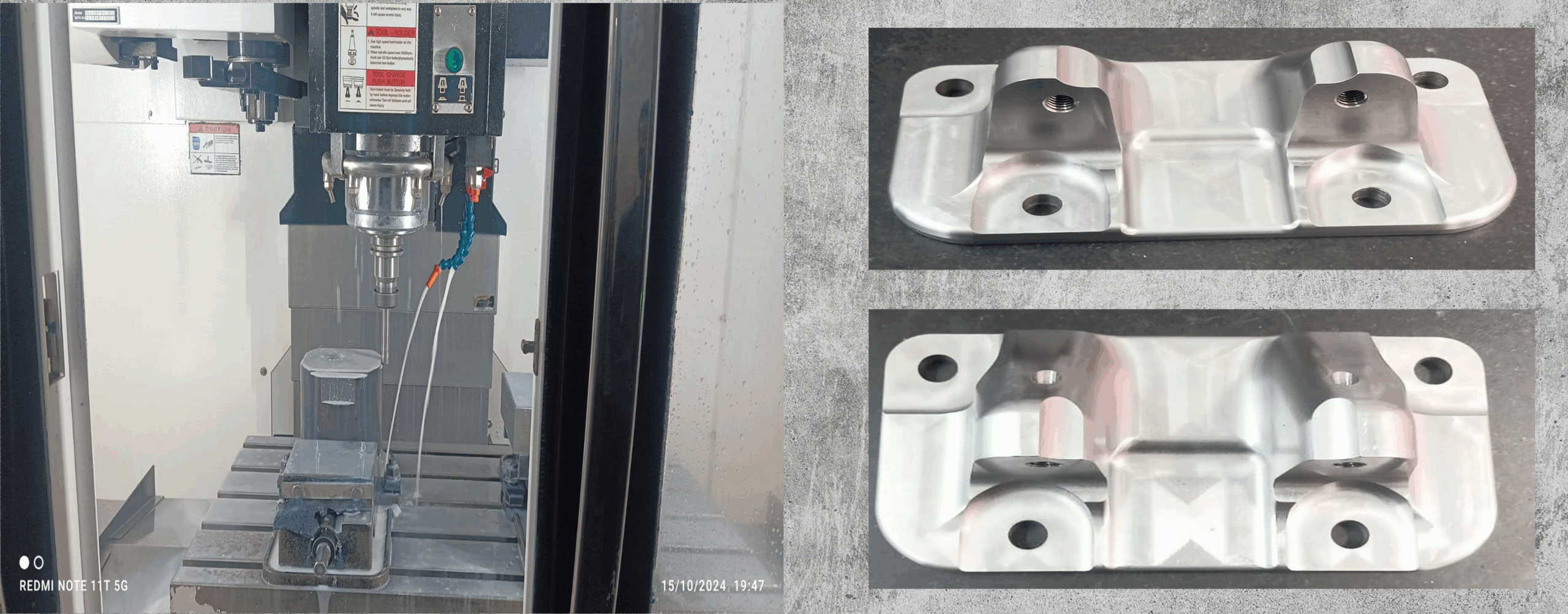

 12 Vertical Milling Centers (VMC) and two 5-Axis machines to meet specifications and deliver them to their facility just in time for the vehicle build.

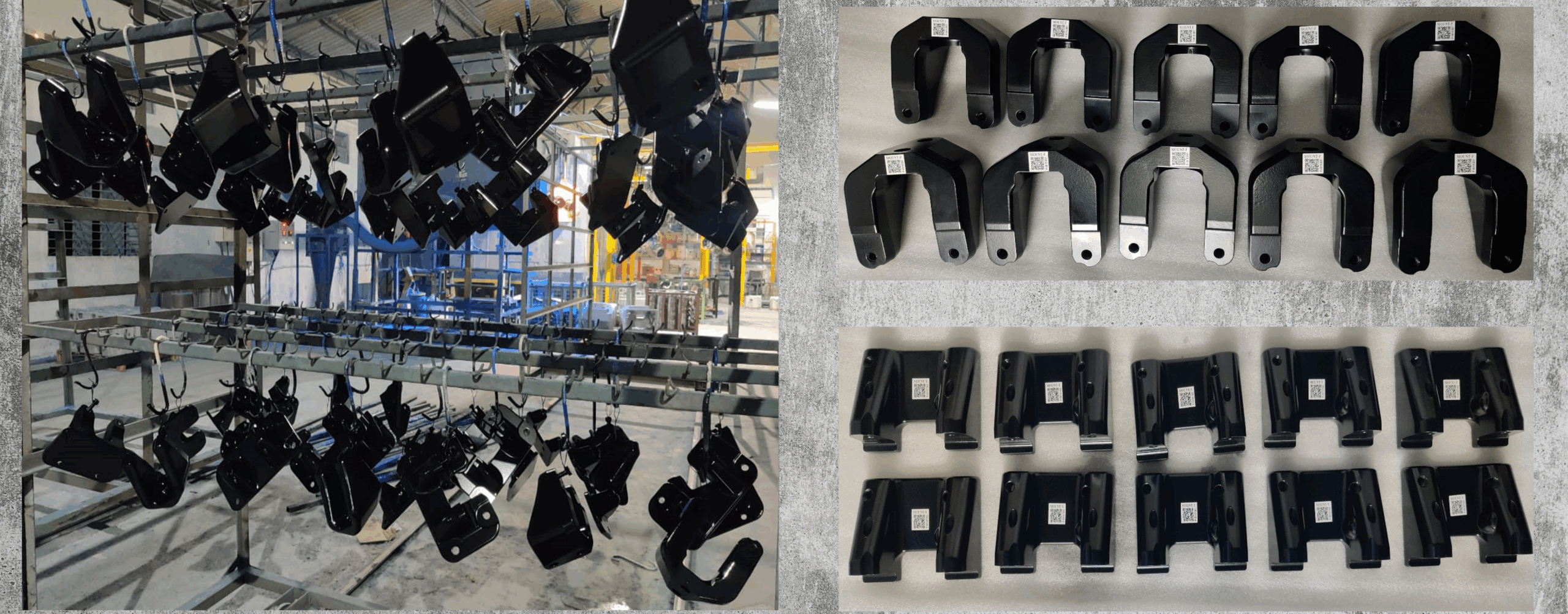

We also CED coated all the parts to a specified thickness of 25 micron before powder coating them to a thickness of 80 micron. For these processes, critical areas were masked like bolt holes to ensure the highest quality surface finishing and final functionality.

Finally, we leveraged our quality processes, which included CMM inspection and scanning. These efforts resulted in a fast and successful project completion and an elated customer.

“I’m excited to share that the stop-gap procedure was a success, and we’ve now successfully launched mass production components using the hot steel forging process on 2500 mt screen press. As battery  mounting brackets for battery packs, the forging process was chosen for its exceptional strength—a critical requirement to ensure the heavy battery packs remain securely in place .” – Austin Downs, MES Sales Manager

The Result: Changing the EV Industry

 By delivering best-in-class rapid prototyping, MES was able speed the completion of initial Pilot builds, and further reinforce the company’s position as an innovation leader that is building the future of e-mobility. MES first partnered with Harbinger over a year ago, having helped them source a Friction Stir Welding (FSW) supplier in 2023.

Contact us to find out how MES can put rapid prototyping capabilities and manufacturing solutions like these to work for you:

  • Rapid prototyping: Aluminum, alloy steel, carbon steel, stainless steel, duplex/super duplex stainless steel, special alloys, copper-based alloys
  • Precision machining: Machined parts from blocks with linear and geometric tolerances from 5 micron (0.000196)
  • Advanced technologies: DMG Mori, Hass, Makino, Mazak VMCs and 5-Axis
  • Shorter lead times: 3 working days for first part delivery
  • Post-processing solutions: Gear cutting, heat treatments, plating, powder coating, welding
